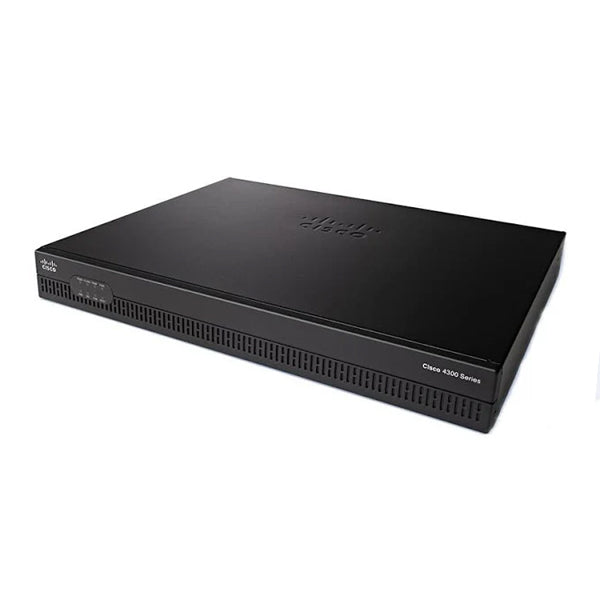

ISR4321/K9 Overview
Cisco 4321 Integrated Services Router delivers 100 Mbps to 300 Mbps aggregate throughput and offers one Enhanced service-module (SM-X) slot, which supports for both single- and double-wide service modules provides flexibility in deployment options.
Cisco ISR4321/K9 Specification
Network interface modules (NIM) |
2 |
Maximum switched Ethernet LAN ports with PoE |
N/A |
EtherSwitch Service Module type (width) |
N/A |
PoE support (wattage) without PoE boost |
120 W |
Intrusion prevention |
Yes |
Cisco Cloud Web Security |
Yes |
Form factor |
1 rack unit (RU), desktop |
SSL VPN |
No |
Module online insertion and removal (OIR) |
Yes |
Power supply type |
External: AC, PoE |
Maximum switched Ethernet ports |
N/A |
Hardware VPN acceleration (DES, 3DES, AES) |
No |
Redundant power supply |
No |
Management port |
1 GE (Integated Out of Band) |
PoE support (wattage) with PoE boost |
260 W |
Integrated Services Card (ISC) slots |
1 (PVDM 4) |
Server virtualization platform (UCS E-Series) |
N/A |
Enhanced Services Module (SM-X) |
N/A |
Identity-based networking |
No |
Zone-based fiewall and NAT services |
VRF-Aware Firewall and Network Address Translation (NAT) |
USB Ports (type A) |
1 |
Integrated WAN ports |
1 GE / SFP 1 GE |
Default/max DRAM |
4 GB / 8 GB |
Default/max Flash |
4 GB / 8 GB |
Performance |
50 Mbps Upgradeable to 100 Mbps |
